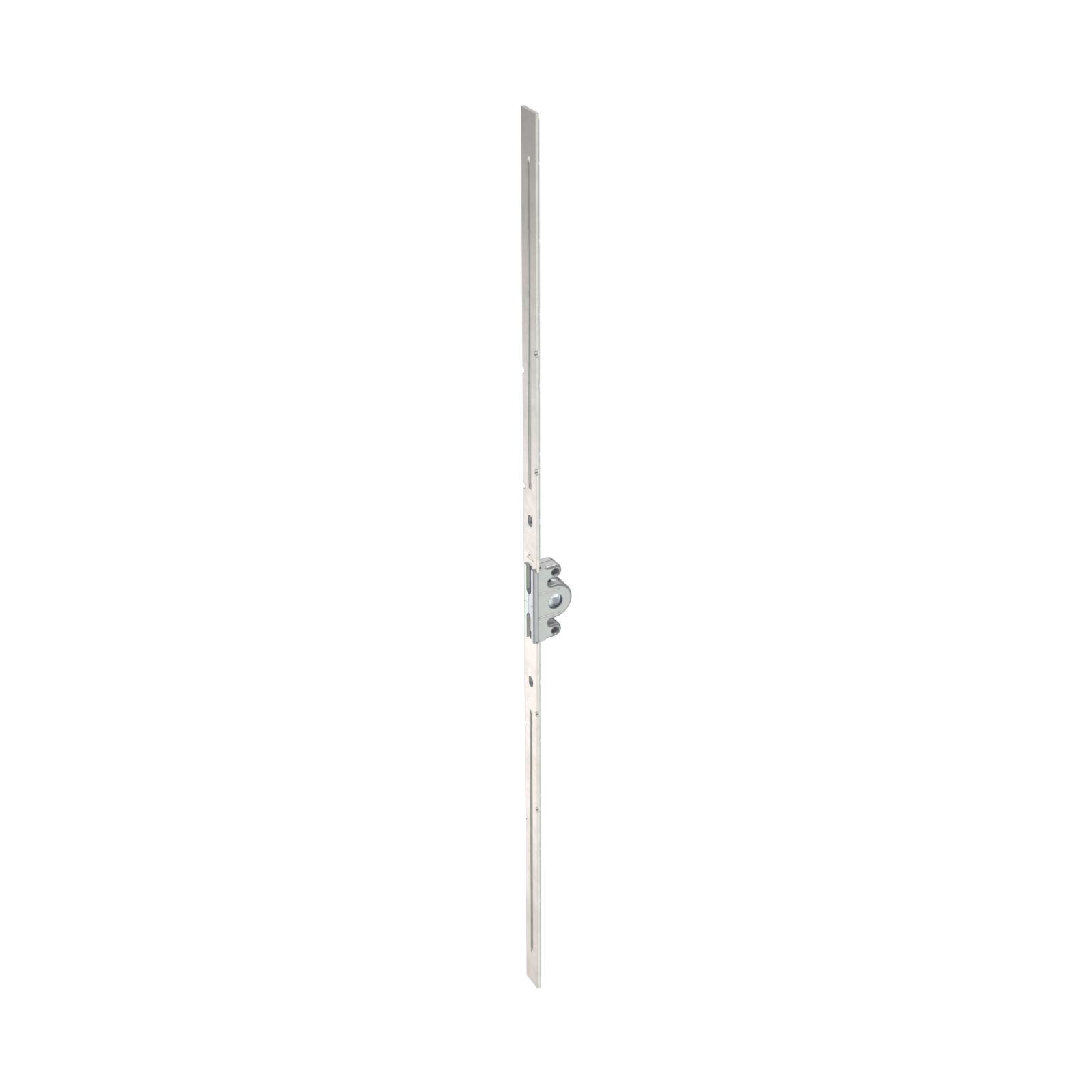

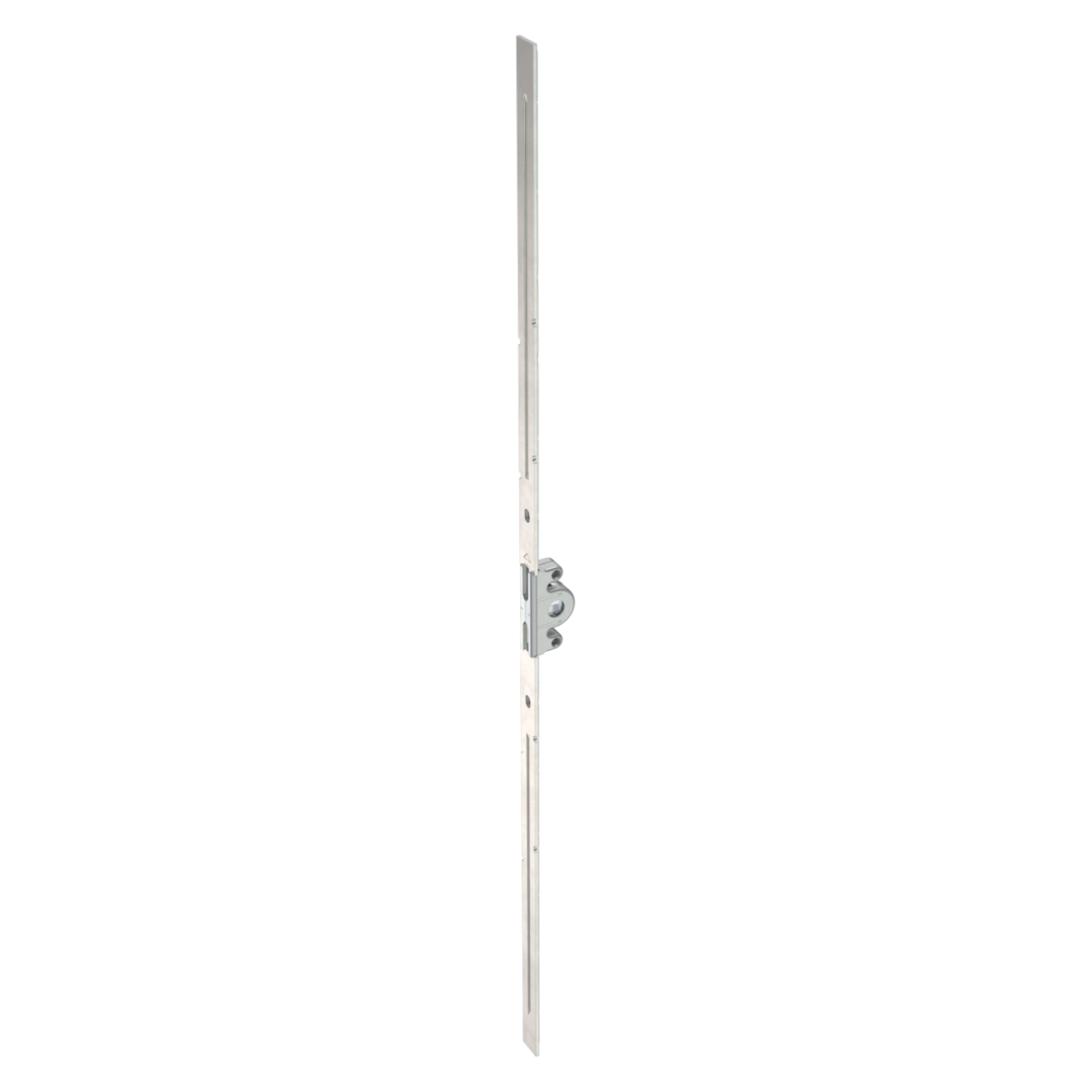

Espag Gear 15 AF TS K25
£2.82 - £4.66
Espag Gear 15 AF TS K25 / K10 is a crucial component within the Siegenia Favorit and Titan AF hardware systems, designed for use in timber and PVC window elements with a turn and tilt function.
About this product
The Siegenia Espag Gear 15 AF TS K25 K10 is a vital component within Siegenia's Favorit and Titan AF hardware systems, meticulously engineered to provide smooth and secure operation for timber and PVC window elements featuring a turn and tilt function. This high-quality drive gear mechanism is responsible for coordinating the window's top and bottom corner drives, the scissor stay for the tilt action, and the backbolt mechanism, ensuring the reliable and precise movement of your windows and patio doors.
As the central drive gear, it operates the entire Tilt and Turn system, facilitating both the tilting and turning actions of the window.
Backset: This Espag Gear features a 15mm backset.
Handle Height Options: Available in various sizes to accommodate a wide range of sash heights (FFH), ensuring the perfect fit for your window:
- SZ 20: For sash heights (FFH) ranging from 260mm to 600mm.
- SZ 60: For sash heights (FFH) ranging from 601mm to 1000mm.
- SZ 70: For sash heights (FFH) ranging from 701mm to 1000mm.
- SZ 80: For sash heights (FFH) ranging from 801mm to 1200mm.
- SZ120: For sash heights (FFH) ranging from 1201mm to 1600mm.
Centre/Variable Handle Height: This mechanism supports a centre or variable handle height, offering flexibility in window design and function.
Enhanced Security: Proper installation and function of this Espag Gear ensure the correct engagement of all locking points, contributing to the overall security of your windows and patio doors.
Replacing worn or faulty Tilt and Turn gearing mechanisms in compatible window systems, ensuring the restoration of smooth operation and security.
Windows and patio doors utilising the Siegenia Favorit or Titan AF hardware systems.
