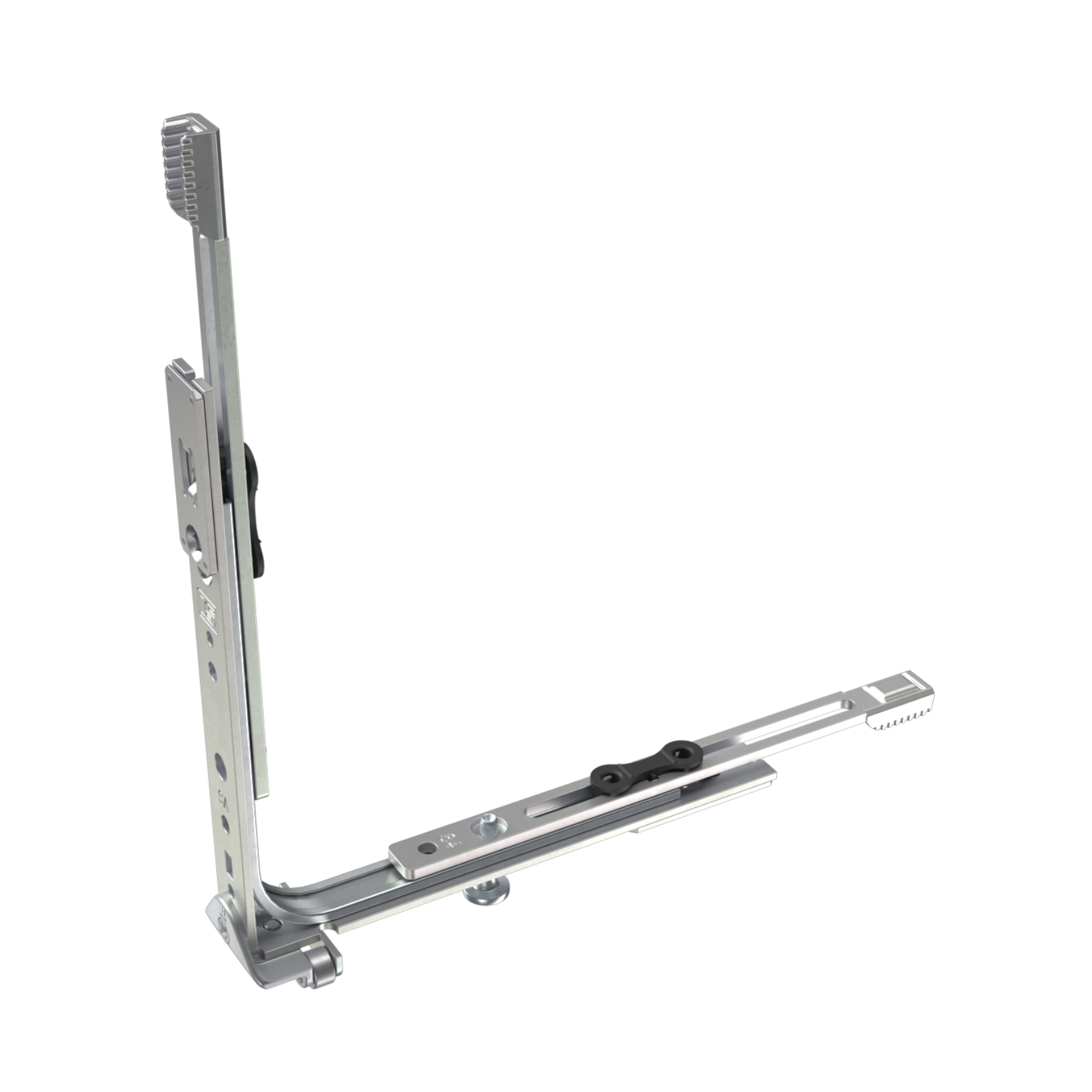

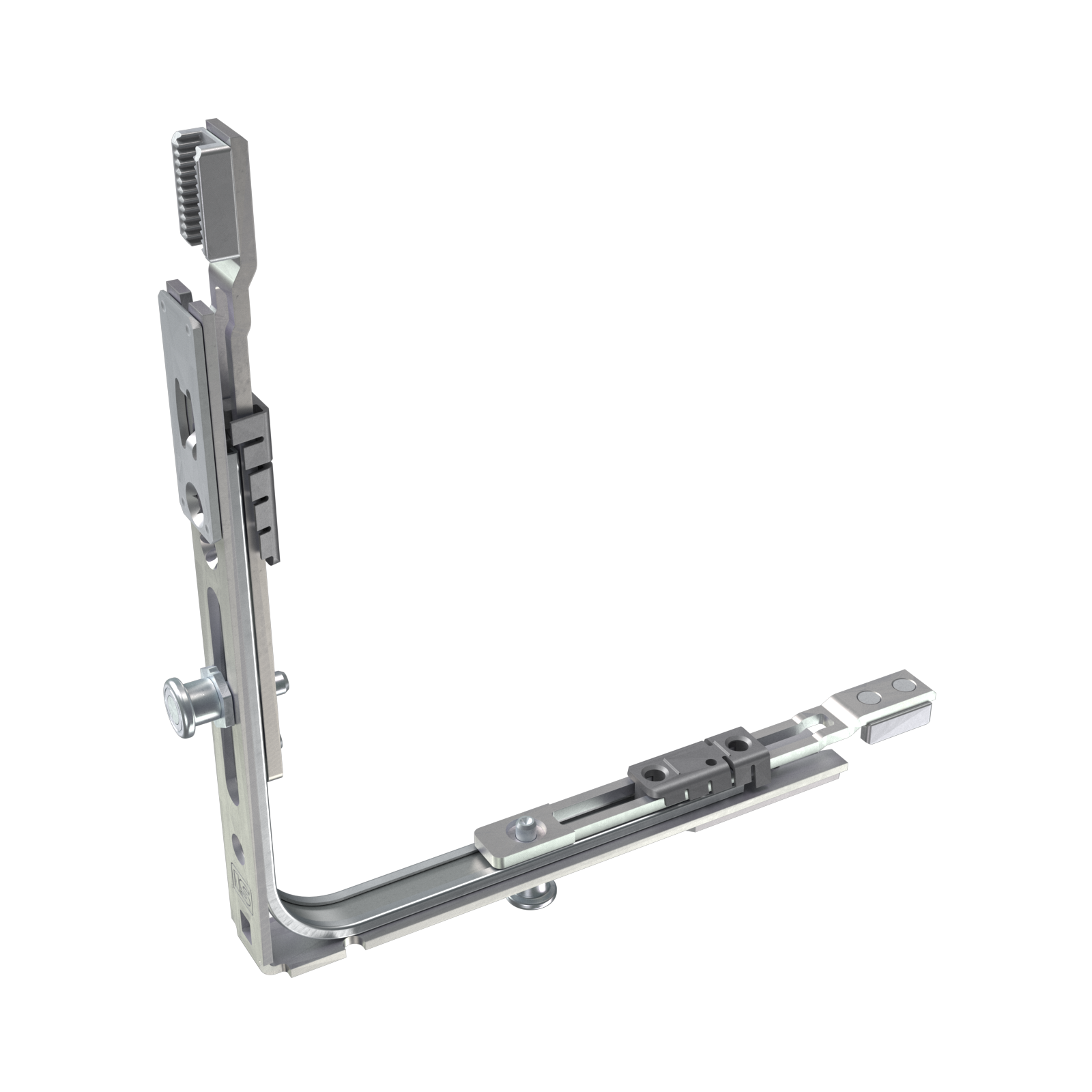

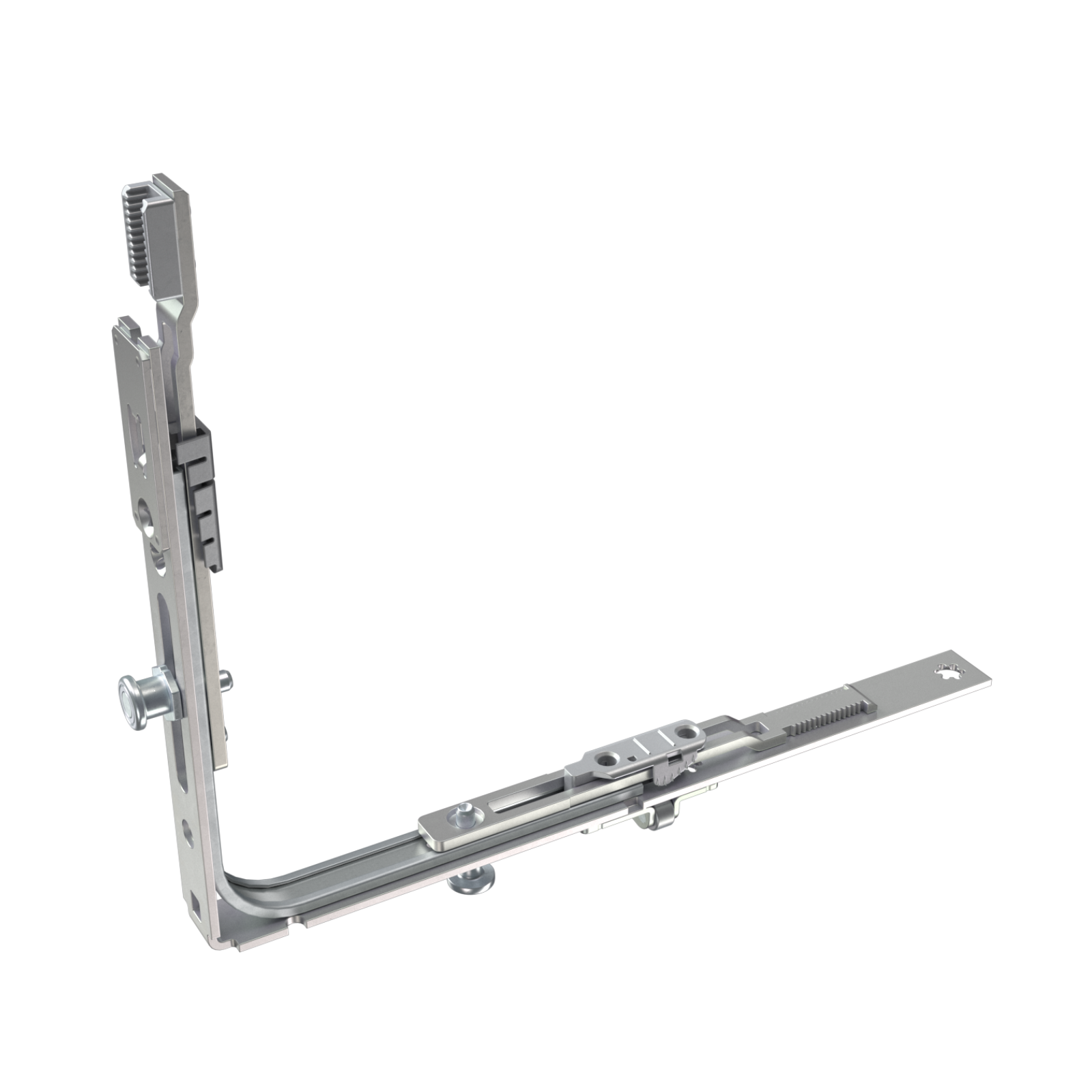

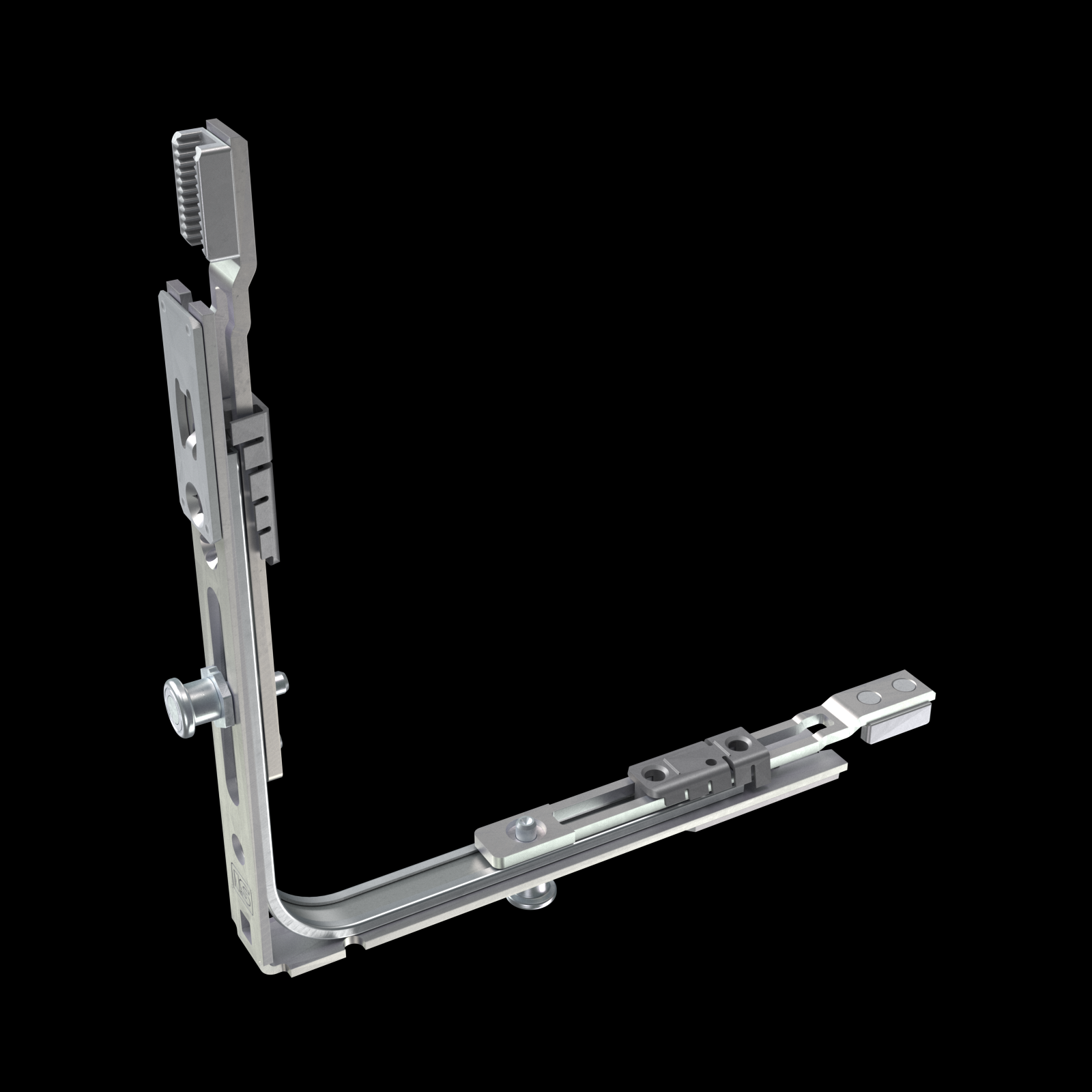

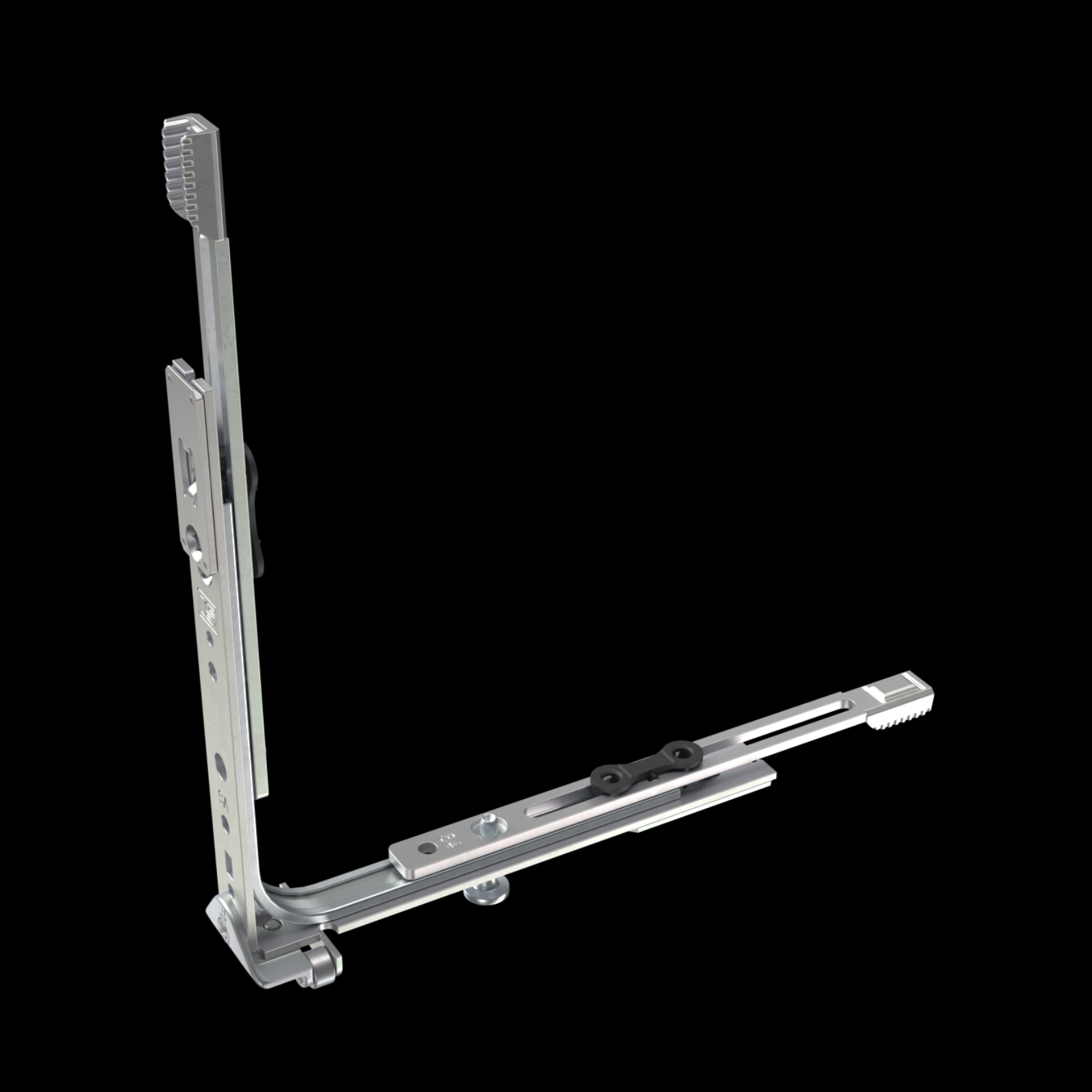

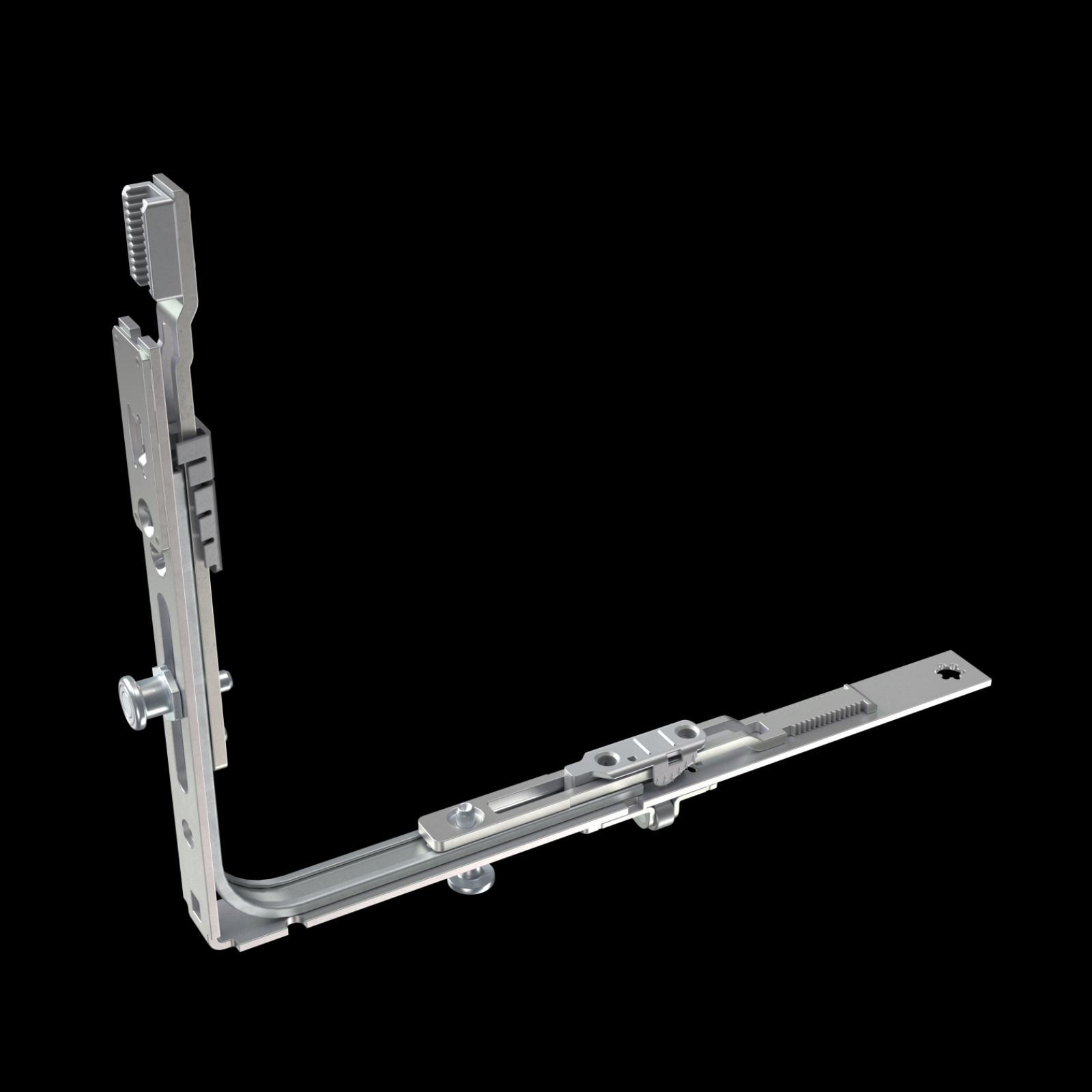

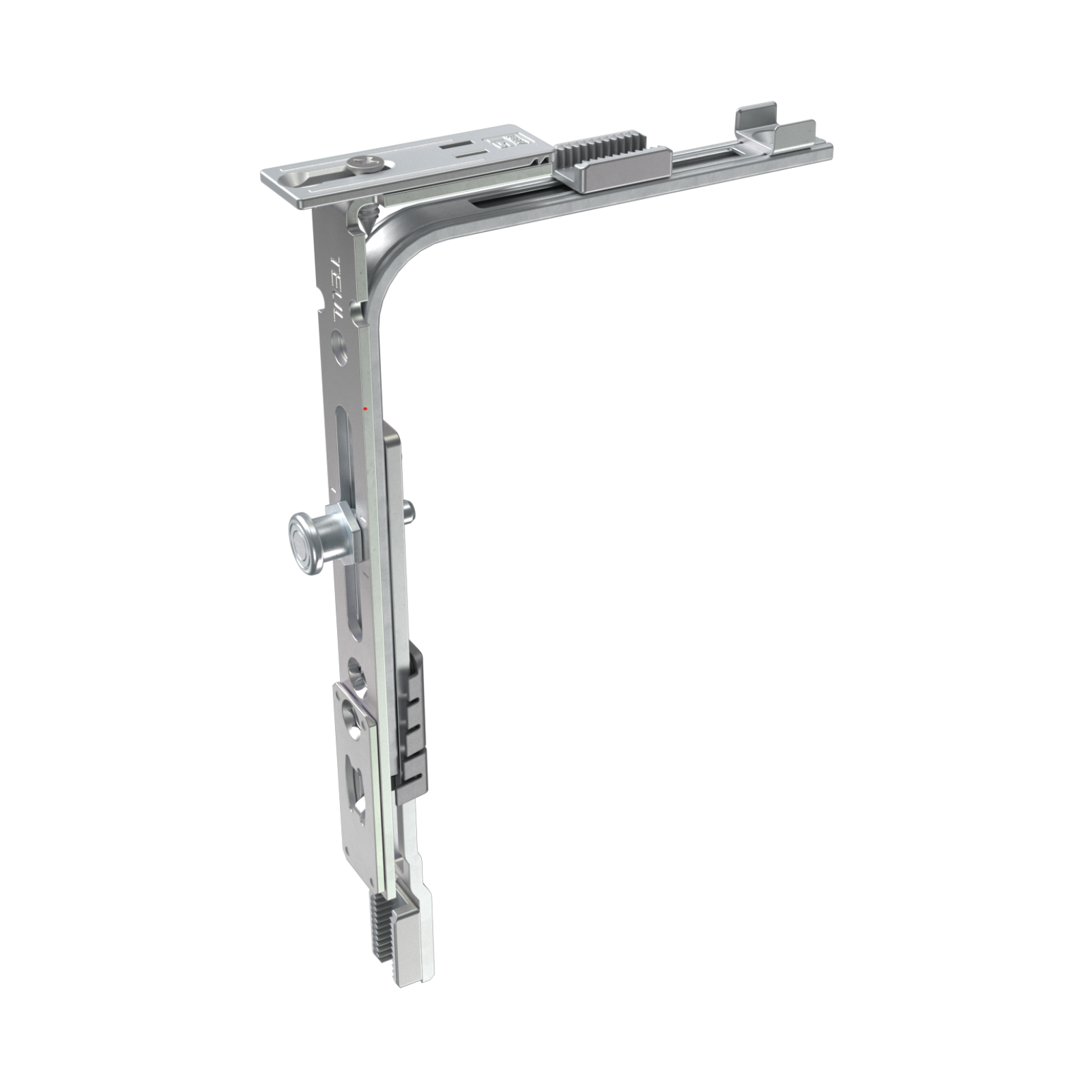

Corner Drive
£2.82 - £6.97
A corner drive component for timber or PVC windows and patio doors with a turn and tilt function. It is part of the Siegenia Favorit hardware system.
About this product
It is part of the Siegenia Favorit hardware system.
- Function: Turn and Tilt.
- Material: Suitable for timber and PVC windows.
- Locking: S-ES cam locking type for increased security.
- Sash Lifter: Pre-mounted sash lifter included.
- Locking Side: VSU locking side, bottom.
- Groove Axis: Designed for a 13mm groove axis position.
- Coupling: Toothed shoe coupling.
- Colour: Silver.
- Direction: Can be used for both right and left-handed windows.
- Faceplate Lengths: Faceplate lengths 1 and 2 are both 139.5 mm (not cropped).
- Suitable Sash Dimensions: Sash rebate width (FFB): 290 - 1560 mm
- Sash rebate height (FFH): 365 - 2360 mm
- Part number FEUL1500-100050.
