Korniche FlatLite Rooflight
28mm Double Glazed
44mm Triple Glazed
Available Set Sizes (External Curb Dimensions)
- 400mm x 700mm | 400mm x 1000mm
- 600mm x 600mm | 600mm x 900mm | 600mm x 1200mm
- 800mm x 800mm | 800mm x 1300mm | 800mm x 1800mm
- 1000mm x 1000mm | 1000mm x 1500mm | 1000mm x 2000mm | 1000mm x 2700mm
The Installer Advantage: Eliminating Seal Shear
Low-cost flat glass rooflights typically carry a major structural risk: inconsistent sealant application leading to seal shear and water leakage as temperatures fluctuate. The Korniche FlatLite™ eliminates this headache entirely with a smart, repeatable installation system.
Striking Frameless Aesthetic

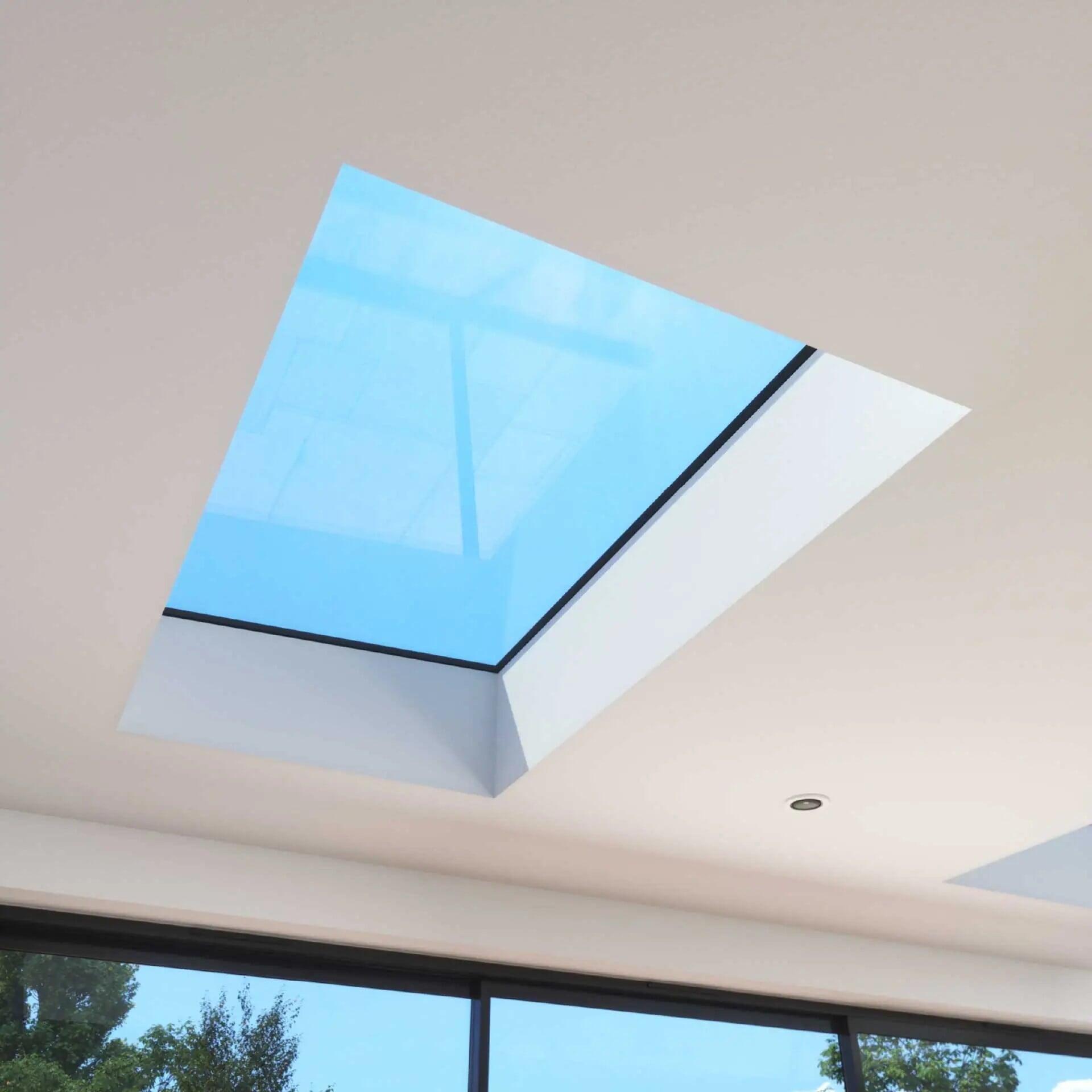

Designed with a sleek, minimalist exterior profile and no internal framework intrusion, the FlatLite™ allows a completely unobstructed view of the sky. This maximizes day illumination while completely hiding bulky structural framing beneath standard internal plaster lines.

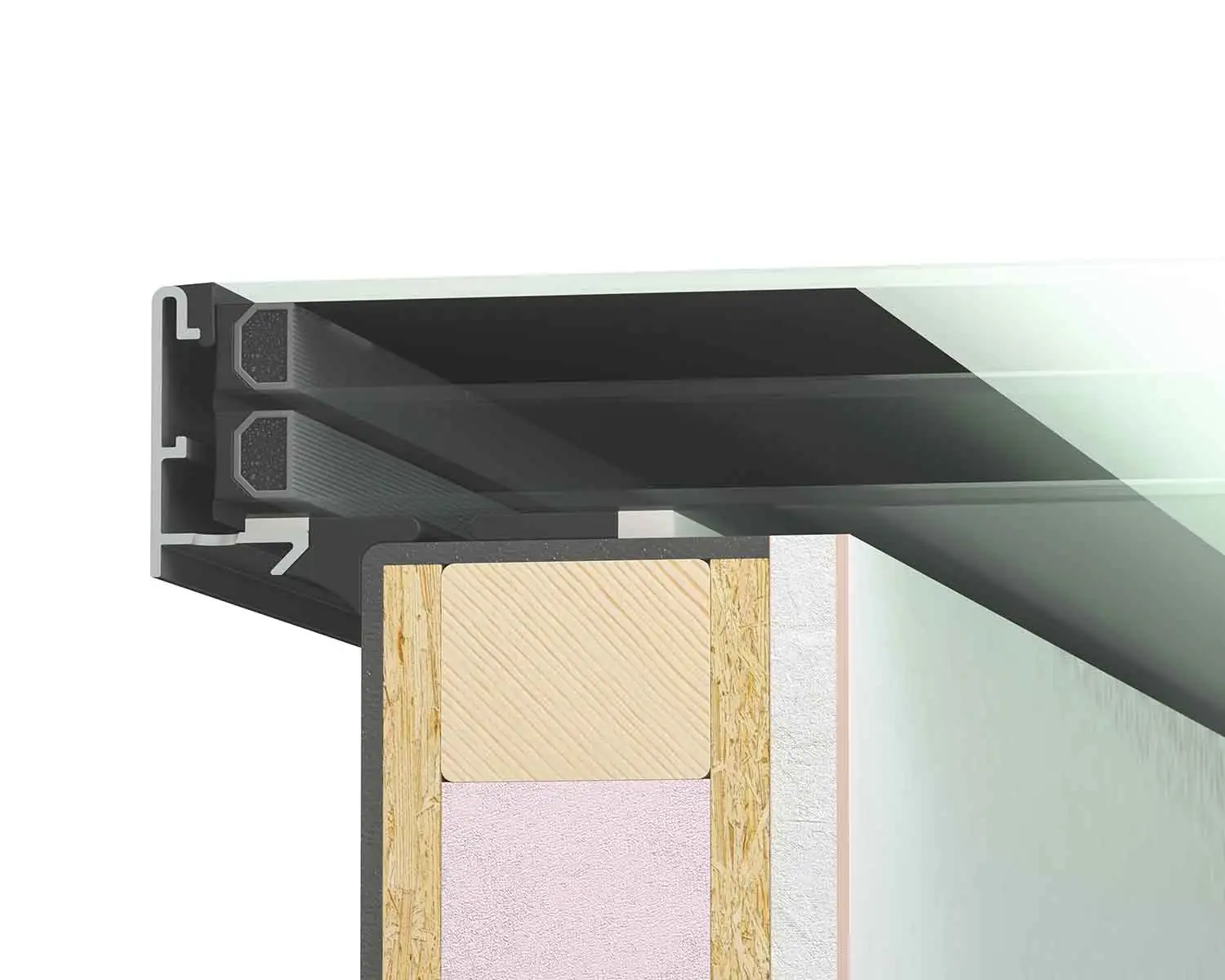

High-Performance Triple Weather Seals
Built to survive the toughest British downpours, the frame incorporates an advanced triple weather seal layout. Tested rigorously to premium standards, it delivers exceptional durability
- Air Leakage Protection: 600 Pa (Class 4)
- Weathertightness Security: 600 Pa (Class 9A)
- Wind Load Resistance: 1600 Pa (Class C4)
PAS24:2022 Security Protection
Security is never an afterthought. Despite its highly competitive price point, the FlatLite™ achieves full PAS24:2022 high-security certification as standard, introducing an advanced structural barrier that guards against forced entry and potential threats.

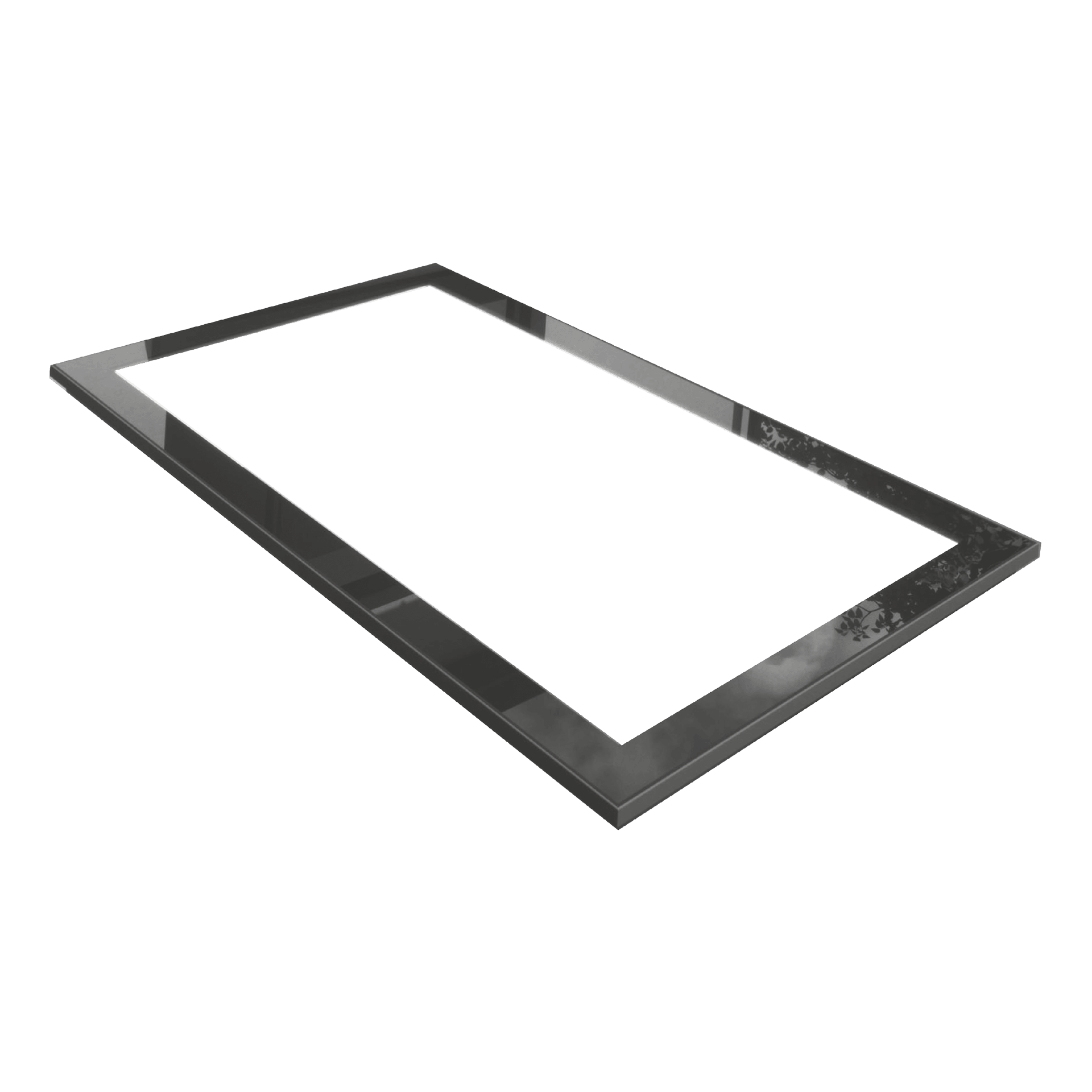

Optional Ceramic Edge Border
Tailor the final look to match your budget. Choose a standard gloss black ceramic edge border to flawlessly conceal the outer structural sealant lines for a refined, tidy look, or choose a plain glass border on non-overlooked projects to drive costs down further.
Talk to Our Sales team
Sizing Matrix & Glazing Configurations

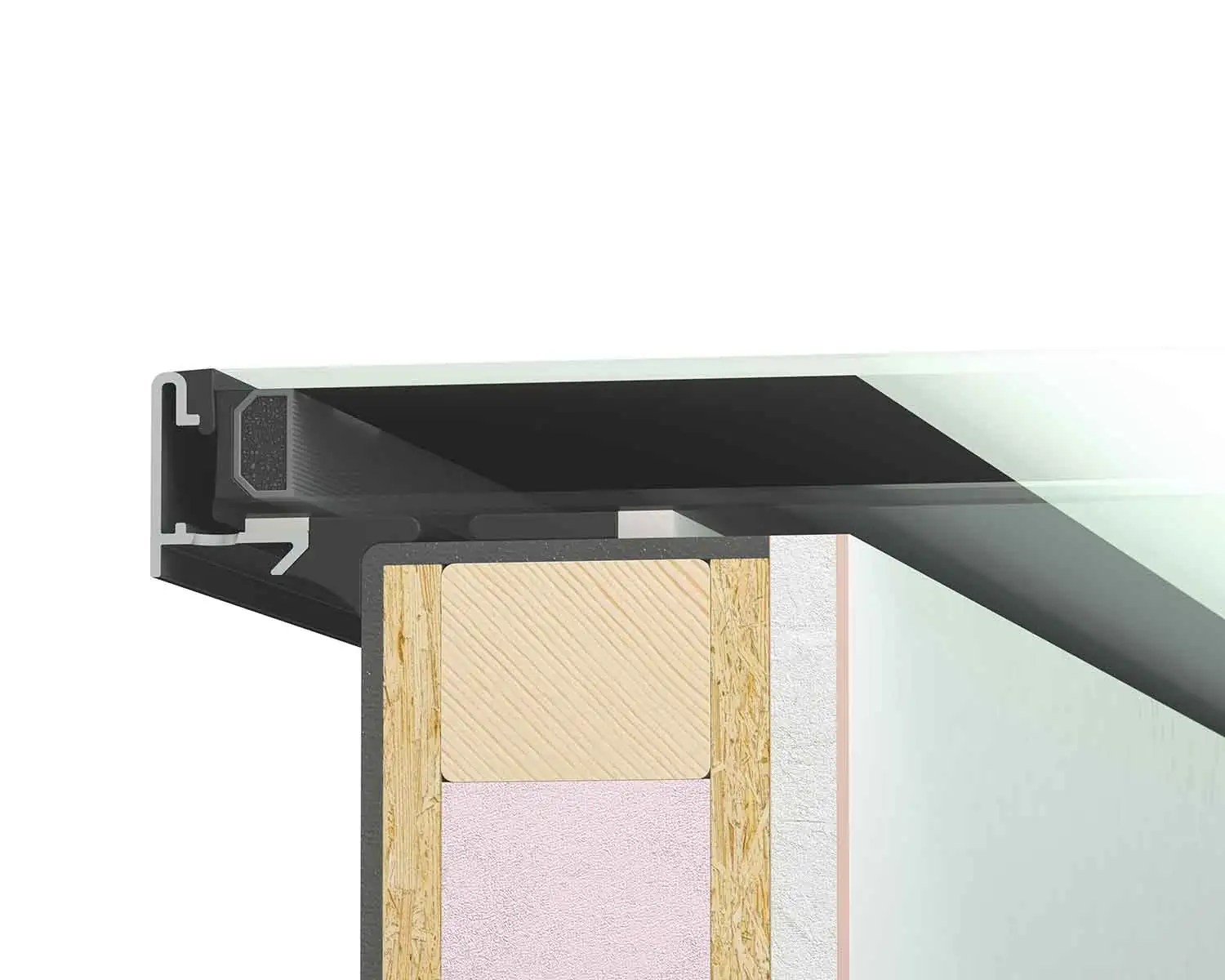

- Glazing Profile Depths: Choose between cost-effective 28mm double-glazed units or ultra-insulated 44mm triple-glazed units depending on project thermal targets.
- Safety Lamination Upgrades: Glass panels feature standard toughened safety glass (4mm or 6mm depending on size), with an available 6.8mm laminated inner glass pane upgrade for ultimate high-level protection
Stock & Bespoke Frame Colours
- Stock Choices: Gloss White (RAL 9910), Matt Anthracite Grey (RAL 7016), and Matt Black (RAL 9005).
- 400mm x 700mm | 400mm x 1000mm, 600mm x 600mm | 600mm x 900mm | 600mm x 1200mm, 800mm x 800mm | 800mm x 1300mm | 800mm x 1800mm, 1000mm x 1000mm | 1000mm x 1500mm | 1000mm x 2000mm | 1000mm x 2700mm
Technical Specifications
- Material Base: Premium marine-grade architectural aluminium
- Glazing System: 28mm Double Glazing or 44mm Triple Glazing profiles
- Glass Upgrades: 4mm/6mm Toughened; Optional 6.8mm Laminated inner pane
- Security Rating: Fully PAS24:2022 certified as standard
- Installation Pitch: Engineered for installations set at a 3° to 5° pitch
